EV Charging Pin Plating Guide: Silver, Tin, Nickel, and Gold Compared for CCS, NACS, and Type 2 Connectors
Direct answer: EV charging pin plating determines contact resistance, mating-cycle durability, corrosion resistance, and heat-rise behavior during high-current DC fast charging. Silver plating delivers the lowest contact resistance and is the dominant finish for CCS2 and NACS high-power pins; tin is the cost-effective default for Type 2 AC charging and signal pins; nickel is used as a diffusion barrier underplate and as a standalone hard finish; gold appears on low-current signal and pilot pins where oxidation must be eliminated. Wenzhou Ouxi Electronics (VOLCRIX) produces silver-, tin-, nickel-, and gold-plated EV charging pins in C18150 CuCrZr, C11000 ETP copper, and brass C3604, with plus minus 0.01 mm OD tolerance, in-house plating lines, salt-spray testing to ASTM B117, and IATF 16949 control plans shipped to North American and European EVSE OEMs since 2018.
Common Applications for Plated EV Charging Pins

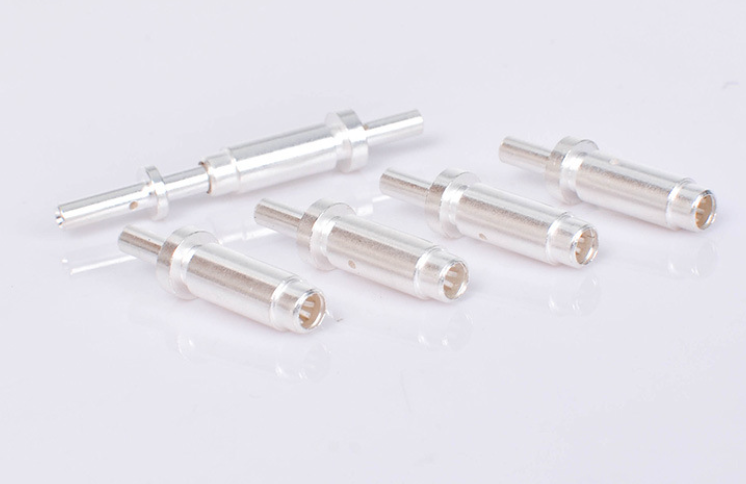

- CCS2 DC fast charging pins (Combo 2, IEC 62196-3): silver-plated C18150 power pins rated 200 A continuous / 350 A peak at 1000 V DC, with selective silver over a full nickel underplate and chrome-free matte tin on the crimp barrel.
- NACS (Tesla) AC and DC charging pins: silver-plated CuCrZr contact pins with plus minus 0.01 mm diameter tolerance and 5-8 microns silver thickness to handle 500 V DC at up to 250 kW Supercharger-class current.
- Type 2 AC charging pins (IEC 62196-2): tin-plated brass C3604 L, N, PE, and CP signal pins, plus selective silver on PP/CP pilot contacts where the connector spec mandates low contact resistance.
- GB/T 20234.2 China DC charging pins: silver-plated C11000 power pins rated 250 A, with nickel underplate (3-5 microns) and silver top layer (5-10 microns) verified by XRF thickness mapping.
- Liquid-cooled high-power charging pins (HPC 500-1000 A): silver-plated CuCrZr pins with integrated cooling channels; VOLCRIX supplies 800 V architecture pins for 350-480 kW chargers.
- EV charging cable assembly contacts (Mode 2 / Mode 3): tin-plated brass pins in portable and wallbox connectors where cost per contact is the primary selection driver.
Manufacturing Support from VOLCRIX
- Material selection across C11000 ETP copper (101% IACS), C18150 CuCrZr (above 80% IACS, heat-treatable to HRB 90+), brass C3604 (machinability rating 100), and stainless 303/316L when the application rejects copper-base alloys.
- Plating-line capability: matte tin (3-8 microns), bright tin (3-10 microns), pure silver (3-12 microns), hard silver with anti-tarnish (5-10 microns), electrolytic nickel (3-8 microns) as barrier, electroless nickel (5-15 microns) for wear surfaces, and gold (0.5-2 microns) over nickel for signal pins.
- DFM review of plating zones — the RFQ must specify mating, termination, retention, and non-functional zones separately, because selective plating drives cost and rejects if zones are not declared.
- In-house inspection: XRF coating-thickness mapping at the supplier-agreed measurement points, ASTM B117 salt-spray rating (typically 96-500 h depending on finish), contact-resistance verification to IEC 60512-2-1 at millivolt level, and cross-section metallography on first articles.
- IATF 16949 control plan, PPAP Level 3 available, REACH and RoHS declarations, and customer-specific packaging (anti-tarnish paper, ESD-controlled trays, lot-traceable labels).
EV Charging Pin Plating Buyer Checklist
- Mark all plating zones explicitly in the drawing — mating, termination, retention, and non-functional — and name the controlling finish standard (ASTM B700 for silver, ASTM B545 for tin, ASTM B689 for gold). A finish name alone does not determine performance: contact geometry, normal force, base material, underplate, porosity, mating cycles, current, and temperature all affect the assembled connector system.
- Confirm whether plating thickness is before or after forming. Pin tip forming, swaging, or crimp-barrel drawing changes functional size; if the dimension applies “after plating,” the supplier must plate after the secondary operation or hold tighter pre-plate tolerances.
- Specify acceptance evidence: XRF measurement locations, reporting units (microns vs. microinches), sample frequency, and acceptance rule. A one-time plating report is not a control plan.
- State mating-cycle, current-load, and corrosion requirements: e.g. 10,000 mating cycles, 200 A continuous, ASTM B117 96 h neutral salt spray, contact resistance at or below 5 mOhm at rated current. These drive plating choice (silver for high current, gold for signal, tin for cost) and underplate requirement.
- Review change-control terms before tooling release: which plating bath, supplier, or process changes require buyer notification? For automotive programs (IATF 16949), any plating chemistry change typically triggers PPAP revalidation.
EV Charging Pin Plating Layer Stack Reference
The right plating stack is determined by base material, current rating, mating cycles, and the connector standard (CCS, NACS, GB/T, Type 2). The four most common layer stacks in high-volume production are summarized below:
| Application | Base material | Underplate | Functional topcoat (mating zone) | Non-functional zone |
|---|---|---|---|---|
| CCS2 DC power pin 350 A | C18150 CuCrZr | 3-5 microns electrolytic Ni | 5-10 microns pure Ag | 3-5 microns matte Sn |
| NACS power pin 250 kW class | C11000 ETP copper | 3-5 microns electrolytic Ni | 5-8 microns hard Ag + anti-tarnish | 3-5 microns matte Sn |
| Type 2 AC L/N/PE pin | Brass C3604 | 2-3 microns electrolytic Ni (optional) | 3-8 microns matte Sn | Same as mating |
| GB/T 20234.2 DC pin 250 A | C11000 ETP copper | 3-5 microns electrolytic Ni | 5-10 microns pure Ag | 3-5 microns matte Sn |
| CP / PP pilot signal pin | Brass C3604 | 3-5 microns electrolytic Ni | 1-2 microns Au over Ni | Same as mating |
| Liquid-cooled HPC pin 800 A | C18150 CuCrZr (heat-treated) | 5 microns electrolytic Ni | 8-12 microns pure Ag | 3-5 microns matte Sn |
When the base material is C18150 CuCrZr, the heat treatment (solution + precipitation hardening to HRB 90+) must be completed before plating to lock in mechanical properties. C11000 ETP copper is softer and easier to plate but loses hardness above 150 C, so the part must not exceed that temperature in subsequent soldering or overmolding operations.
Plating Defects Common to EV Charging Pins
- Porosity in silver layer: typically caused by high plating current density or contaminated bath; porosity lets copper diffuse through and raises contact resistance under load. Prevention: keep current density at or below 2 A/dm2, filter bath continuously, and run a Hull-cell test weekly.
- Tin whiskers: spontaneous growth of conductive filaments from matte tin surfaces, especially on parts stored above 50 C or under mechanical stress. Modern automotive specs require either reflowed (hot-dip equivalent) tin, or 2-3 microns nickel underplate.
- Blistering after assembly: trapped hydrogen under the plating expands during soldering or overmolding and lifts the plating layer. Prevention: bake-out at 200 C for 4 hours after plating to drive off hydrogen before any thermal process.
- Peeling at the crimp zone: caused by plating on top of oil residue, or by excessive crimp-barrel compression thinning the silver below 2 microns. Prevention: degrease the crimp barrel before plating, and check post-crimp plating thickness by XRF.
- Color drift on silver: silver tarnishes in atmospheres with H2S or chlorides, forming yellow or black Ag2S. Anti-tarnish topcoats (benzotriazole-based) extend shelf life from 30 days to 6-12 months.
Standards Governing EV Charging Pin Plating
- ASTM B700 — silver plating (purity, thickness, adhesion). Specifies grade A (99.9% pure), grade B (with anti-tarnish), grade C (bright), grade D (matte). VOLCRIX ships grades A and B for EV charging pins.
- ASTM B545 — electrodeposited tin (matte and bright). Specifies thickness classes and adhesion tests.
- ASTM B689 — electrodeposited engineering chromium / hard nickel / gold for electrical contacts.
- ASTM B117 — salt spray (fog) testing; standard practice for operating salt spray apparatus. 96 h is typical for indoor EVSE; 500 h for outdoor.
- IEC 60512-2-1 — connector tests: contact resistance at millivolt level (the relevant method for measuring a single mated pin).
- IEC 62196-3 — the connector standard itself (CCS Combo 2, defining pin geometry, current, voltage, and mating cycles).
- GB/T 20234.2 — China-specific DC charging connector standard with its own pin geometry and plating thickness requirements.
Related Custom Manufacturing Services
Custom Swiss Turning Parts | Connector Pin Manufacturing Guide | EV Charging Pin Quality Control & Testing | Custom Metal Stamping Parts
FAQ: EV Charging Pin Plating Selection
What is the best plating for high-current DC fast charging pins?
Silver plating over a nickel underplate is the standard for CCS, NACS, and GB/T high-current pins. Silver offers the lowest contact resistance (~0.5 mOhm at rated normal force), superior heat-rise performance under continuous 200-500 A load, and proven durability beyond 10,000 mating cycles. VOLCRIX recommends 5-10 microns silver over 3-5 microns electrolytic nickel on C18150 CuCrZr for above 350 A continuous applications.
When is tin plating acceptable for EV charging pins?
Tin (3-8 microns matte tin per ASTM B545) is acceptable for Type 2 AC charging power pins, signal and pilot pins (CP, PP, N, L), and GB/T AC pins where cost-per-contact is the primary selection driver. Tin has higher contact resistance than silver and is prone to tin-whisker growth above ~50 C; many automotive OEMs now specify matte tin with a nickel underplate (2-3 microns) to suppress whiskers.
Why do most high-current pins use a nickel underplate under silver?
Nickel blocks copper diffusion into the silver layer. Without a nickel barrier, copper migrates through silver at elevated temperatures, raising contact resistance over time and causing field failures. A 3-5 microns electrolytic nickel underplate under the silver is the industry-default layer stack for at or above 200 A DC pins; the underplate is also where chromium-free matte tin is added for non-functional zones.
What plating thickness should I specify for a CCS2 350 A charging pin?
For CCS2 350 A peak power pins in C18150 CuCrZr, VOLCRIX recommends 3-5 microns electrolytic nickel underplate + 5-10 microns silver on the mating zone, with 3-5 microns matte tin on the crimp barrel (non-functional). Verify by XRF at three locations per pin on a sampling basis (typically AQL 1.0, 4.0). The mating-zone thickness must remain in spec after any post-plate forming or swaging operation.
Does gold plating have a place in EV charging connectors?
Gold plating (0.5-2 microns) is reserved for low-current signal pins where oxidation cannot be tolerated: proximity-pilot (PP), control-pilot (CP), and CAN communication pins. Gold is too soft and too expensive for power pins; it wears off after a few hundred mating cycles under normal force. For signal pins, specify 1-2 microns gold over 3-5 microns electrolytic nickel per ASTM B689.
How does VOLCRIX verify plating quality before shipment?
Every plating lot ships with: (1) XRF coating-thickness report at supplier-agreed measurement points; (2) cross-section metallography on first article and one piece per lot; (3) ASTM B117 salt-spray result (96-500 h depending on the finish spec); (4) contact-resistance measurement per IEC 60512-2-1 on a sampling basis; (5) visual acceptance criteria for color uniformity, porosity, and blistering per ASTM B571. PPAP Level 3 documentation is provided for automotive programs.
Can plating thickness change after crimping or swaging?
Yes. Crimp barrel compression can thin the plating locally; swaging or tip-forming can displace plating. If the drawing applies dimensions “after plating,” the supplier must plate after the secondary operation, or hold tighter pre-plate tolerances and accept higher plating-rejection rates. VOLCRIX typically plates before crimp barrel compression where the crimp zone is non-functional (matte tin acceptable), and after final form on functional mating zones.
What is the typical MOQ and lead time for plated EV charging pins?
MOQ for prototype: 200-500 pcs per part number with 10-15 working days lead time. Production runs typically start at 1,000 pcs; standard lead time is 25-30 working days after drawing approval and plating bath qualification. Custom plating chemistry (e.g. lead-free matte tin with anti-whisker additive, hard silver with anti-tarnish topcoat) may add 5 working days for bath setup and first-article XRF mapping.
