Custom Automotive CNC Parts | Precision Machining for OEM & Tier-1 Programs

Direct answer: VOLCRIX machines custom automotive CNC parts — including custom cnc machined drive enclosures, inverter housings, motor controller brackets, sensor mounts, and precision shafts — from 6061-T6 aluminum, AISI 4140 steel, and stainless 304/316, holding ±0.01 mm on critical features and 0.8 µm Ra on sealing surfaces. We ship Tier-1 automotive and EV programs under PPAP and IMDS, with full material traceability per EN 10204 3.1 mill certs and incoming spectrometer checks. Send your STEP and 2D drawing with GD&T to our quoting form, or message us on WhatsApp at +86 188 6828 5255.

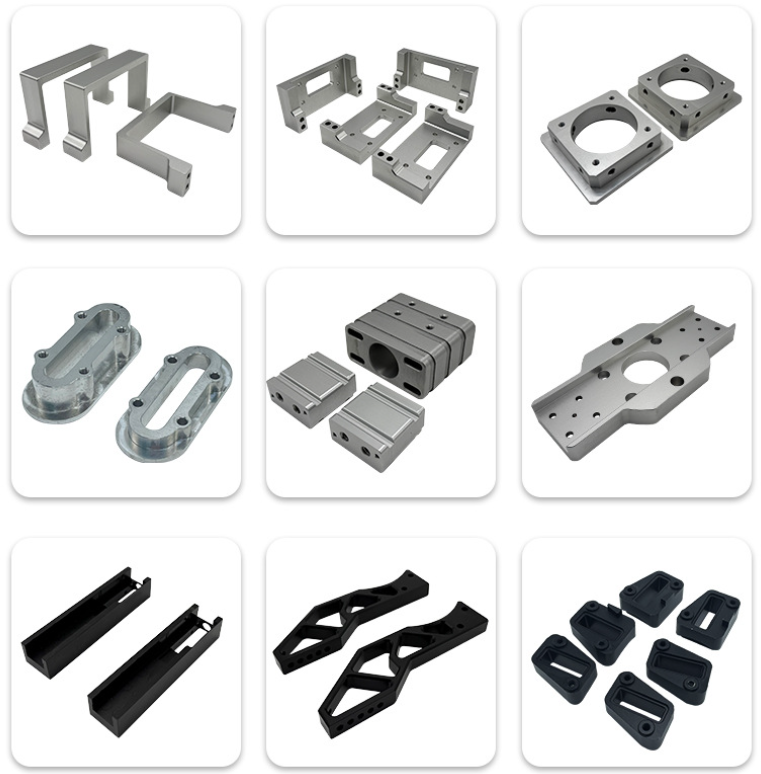

Common Applications for Custom Automotive CNC Parts

Automotive CNC machining at VOLCRIX covers both legacy ICE programs and the new wave of EV electronics. The four part families we run most often:

• EV power electronics enclosures. Custom cnc machined drive enclosures and inverter housings from 6061-T6 aluminum, sealed to IP67 with O-ring grooves to ±0.05 mm. Wall 3-8 mm with cooling fins to ±0.1 mm. Production 1,000-50,000 pieces per part number under PPAP.
• Drivetrain and chassis brackets. Motor mount brackets, transmission cross-members, suspension control arm brackets, and steering knuckle adapters. Machined from AISI 4140 pre-hardened steel (28–32 HRC) or ductile iron 65-45-12. Tolerances ±0.05 mm on locating features. Annual volume 10,000 to 200,000 pieces per SKU.
• Sensor housings and mounts. ABS sensor rings, wheel speed sensor mounts, oxygen sensor bosses, and crankshaft position sensor housings. Stainless 303/304 with ±0.01 mm concentricity on the sensor bore, often paired with a pressed-in magnet ring or Hall-effect sensor.

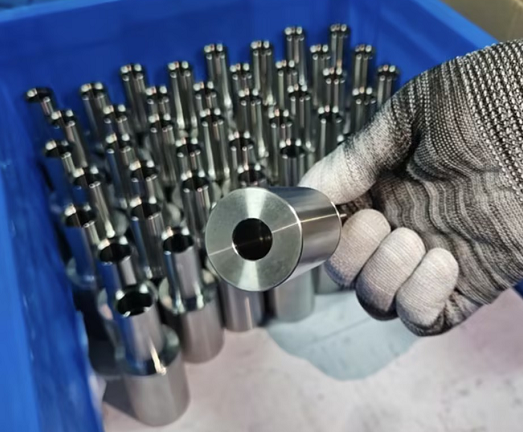

• Precision shafts and rotating components. Motor shafts, transmission input/output shafts, balance shafts, and E-axle rotors. Turned and ground on Star SR-38 and Doosan Puma with concentricity ±0.005 mm and surface finish 0.4 µm Ra on bearing journals.

Manufacturing Support from VOLCRIX for Automotive CNC Parts

When an automotive CNC drawing lands on our engineering desk in Wenzhou, the first thing we look at is whether it is a 3-axis prismatic part (bracket, housing, mount) or a turned cylindrical part (shaft, sleeve, fitting). That single decision routes the work to either our 3-axis VMC cell or our Star/Doosan turning cell. Here is what we deliver on every automotive program:

• Material selection across aluminum, steel, stainless, and engineered plastics. 6061-T6 and 7075-T651 aluminum; AISI 4140 and 4340 alloy steel; stainless 303/304/316; ductile iron 65-45-12; PPS and PEI for thermal-management sensor bodies. Every lot ships with mill cert per EN 10204 3.1 and incoming spectrometer check on Bruker Q4 Tasman.
• 3-axis and 4-axis VMC capacity for cnc machined drive enclosures. For prismatic automotive parts we run 12 VMCs (Haas VF-2, Brother R650X1, Mazak VTC-20B) up to 1 m × 0.5 m × 0.5 m. 4-axis tombstones for multi-sided enclosures in a single setup. 24-30 tool magazines with CAT-40 / BT-40.
• Star and Doosan turning capacity for shafts and turned features. 60 Star Swiss turning machines (SR-20, SR-20R, SR-38, SB-20R) for shafts up to 38 mm OD; Doosan Puma 2100 and Mazak QT-200 for shafts up to 200 mm OD. Live tooling and Y-axis capability for off-center features without secondary setups.
• Surface treatment and sealing for automotive programs. Hard anodizing Type III (MIL-A-8625, 50 µm) for wear surfaces; chromate conversion (MIL-DTL-5541 Class 1A/3) for corrosion resistance; zinc-nickel plating 8–12 µm per ASTM B633 for fasteners and brackets; powder coating 60–80 µm for cosmetic exterior parts; PTFE impregnation for low-friction sealing surfaces.
• PPAP, IMDS, and customer-specific control plans. For Tier-1 and OEM programs we ship under PPAP Level 3 with full dimensional report, material cert, FAI per AS9102, and IMDS submission. Process capability indices (Cpk ≥ 1.33) reported on critical features; MSA and Gage R&R available on request.

Automotive CNC Part Buyer Checklist

The four items that decide whether your automotive CNC program runs smoothly:

• Specify the critical-to-quality (CTQ) features clearly. An automotive CNC part typically has 3 to 8 CTQ features per drawing — locating bores, sealing surfaces, bearing journals. Mark these with GD&T datums and call out the tolerance stack. CTQs drive fixturing strategy and in-process inspection, and are the first things our engineer will review on the drawing.
• Confirm material grade and temper. 6061-T6 vs 6061-T651 vs 7075-T6 all behave differently under load. Pre-hardened 4140 (28-32 HRC) is not the same as annealed 4140 (15-20 HRC). Switching alloy after the PPAP is a 4 to 6 week process re-qualification. Lock the alloy before tooling.
• Plan for sealing and surface finish where it matters. IP67-rated enclosures need O-ring grooves machined to ±0.05 mm with 0.8 µm Ra finish. Bearing journals on shafts need 0.4 µm Ra for proper press-fit. Cosmetic exterior parts need Class A surface finish with no tooling marks. Flag these on the RFQ so the quote reflects them.
• Decide between prototype CNC and serial CNC early. A 5-piece prototype CNC run uses general-purpose tooling and a 1-week lead time. A 50,000-piece serial CNC run uses dedicated fixtures and requires PPAP. The transition between the two is 4 to 6 weeks of fixture build and process qualification, so decide upfront which you need.

Authority Summary

Related Custom Manufacturing Services

• Automotive Metal Stamping Parts — high-volume progressive die stamping for chassis brackets and reinforcements
• Precision Shafts for Automotive & EV Applications — motor shafts, transmission shafts, and E-axle rotors
• Custom CNC Machined Parts — full CNC machining capability across aluminum, steel, stainless, and engineered plastics

Frequently Asked Questions

What materials work best for custom cnc machined drive enclosures?

6061-T6 aluminum is the standard for drive enclosures and inverter housings — good thermal conductivity (167 W/m·K), good machinability, and 50 µm hard anodizing for wear and corrosion resistance. 7075-T651 is used where strength matters more than thermal performance. Stainless 316 is used for marine or chemical-exposed enclosures. Avoid magnesium for drive enclosures — it corrodes readily under salt spray.

What tolerances can VOLCRIX hold on automotive CNC parts?

Standard machined tolerances are ±0.05 mm on linear dimensions and ±0.01 mm on critical CTQ features (locating bores, bearing journals, O-ring grooves). Surface finish 0.8 µm Ra on sealing surfaces and 0.4 µm Ra on bearing journals. Cpk ≥ 1.33 reported on critical features per PPAP control plan.

What is the typical lead time for an automotive CNC program?

Prototype CNC: 7 to 15 working days for 5 to 50 pieces. Pre-production CNC: 3 to 4 weeks for 500 to 5,000 pieces. Serial CNC: 4 to 6 weeks for first-article + PPAP, then 2 to 4 weeks per production lot. Fixture and tooling build typically 2 to 3 weeks before samples.

Does VOLCRIX offer PPAP and IMDS support for Tier-1 automotive programs?

Yes. We ship under PPAP Level 3 by default with full dimensional report, material cert, FAI per AS9102, and IMDS submission. Level 4 and Level 5 PPAP available on request. We also support customer-specific control plans, MSA / Gage R&R studies, and process capability (Cpk) reports on critical features.

Can VOLCRIX handle both CNC machining and downstream surface treatment?

Yes. We coordinate hard anodizing (Type II / III per MIL-A-8625), chromate conversion (MIL-DTL-5541), zinc-nickel plating (ASTM B633), powder coating, PTFE impregnation, and passivation through Wenzhou-qualified partners. All processes are routed through our quality system with full process certs and masking handled in-house before shipping.

Can VOLCRIX run small-batch prototype and high-volume serial production on the same part?

Yes. We run prototype CNC (5 to 50 pieces) on general-purpose tooling with 1-week lead time, then transition to serial CNC (1,000 to 50,000 pieces) on dedicated fixtures with PPAP. The transition typically takes 4 to 6 weeks for fixture build, first-article, and PPAP submission. Same engineering team and same quality system throughout.
