Custom PCB SMT Standoffs & SMT Spacers: CNC-Machined Surface-Mount Hardware

Direct answer: Custom PCB SMT standoffs (also called SMT spacers or surface-mount threaded standoffs) are small turned or milled hardware components supplied in tape-and-reel packaging for high-speed pick-and-place assembly. They replace traditional through-hole standoffs that required secondary installation by allowing the standoff to be soldered onto the PCB pad in the same reflow cycle as other surface-mount components. VOLCRIX machines these in brass (C3604, C11000), stainless (303, 316), and aluminum with controlled thread geometry, base coplanarity under 0.1 mm, and packaging presentation that survives automated placement without flipping or jamming.

This guide covers how SMT standoffs differ from through-hole standoffs, the materials and threads commonly specified, how base geometry and pad design interact, and what a buyer should audit before approving a tape-and-reel packaging spec. By the end you will know what evidence to request before production release and how to keep the supply chain honest on cosmetic and dimensional acceptance.

Common Applications

• Consumer electronics PCBs — board-to-chassis standoffs in Wi-Fi routers, set-top boxes, smart speakers, gaming consoles, and wearables where SMT placement replaces manual screw installation.
• Industrial control and IoT boards — standoffs for PLC carriers, sensor modules, gateway boards, and edge-AI hardware that need mechanical anchoring and a grounding path.
• Automotive electronics — ECU boards, sensor housings, ADAS camera modules, and BMS boards where SMT standoffs reduce assembly time and improve mechanical consistency over hand-screwed hardware.
• Medical and instrumentation boards — patient monitor boards, diagnostic instruments, and lab analyzers where cleanliness, repeatable torque, and audit-friendly lot traceability are required.
• Telecom and networking hardware — base station PCBs, router boards, switch modules, and optical transport boards where standoffs provide both mounting and EMI/grounding functions.
• LED lighting modules — high-power LED boards where the standoff doubles as a thermal path and a mechanical anchor to the heatsink.

Manufacturing Support from VOLCRIX

• 60+ Japanese Star Swiss turning machines — for SMT standoff bodies below 10 mm diameter and above 10:1 L/D, where the guide bushing controls concentricity between thread and base across the part length.
• 40 CNC machining centers — for non-round standoff geometries, square or hex bases, off-axis features, and larger spacers that exceed Swiss turning capacity.
• Tape-and-reel packaging in-house and via audited partners — EIA-481 carrier tape, cover tape, reel sizing per customer spec, with leader-trailer and splice available for high-volume lines.
• Surface finish and plating options — tin, tin-lead, gold, nickel, and passivation applied by audited sub-suppliers, with under-plate roughness controlled for solder wetting.
• Climate-controlled inspection — Zeiss CMM and optical comparators verify thread geometry, base coplanarity, and lot-to-lot dimensional consistency against the customer drawing and packaging spec.

Custom PCB SMT Standoff — Buyer Checklist

• Define the attachment architecture before quoting — soldered base, swaged flange, clipped, or threaded-onto-a-pin each create different risks for pad design, reflow profile, and rework. Do not choose a route from a catalog photo.
• Specify the governing thread standard — M2, M2.5, M3, M4, #4-40, #6-32, and custom threads each call out a different engagement length, gauge, and useful-thread depth. The drawing should name the standard (ISO 261, ANSI B1.13M, etc.), the class (6g for external, 6H for internal), and the useful engagement.
• Mark the board-side seating and mating references — installed height must reference two specific faces, not nominal overall length; otherwise the tolerance stack hides the real variation.
• Require packaging evidence before production release — a one-off photo is not evidence; the buyer should receive a sample reel with a recorded orientation test, pickup test, and pocket-fit check before approving the lot.
• For thermal-cycle or high-vibration environments — request a Cpk study on base coplanarity and a torque-out test on the threaded interface; both are inexpensive to run and prevent field failures that are expensive to debug.

Through-Hole vs SMT Standoff Decision

Decision factor	Through-hole standoff	SMT standoff
Assembly method	Manual screw or press-in after PCB population	Pick-and-place and reflow in same cycle as other SMDs
Mechanical strength	Higher — full PCB thickness engaged	Moderate — depends on pad area, solder volume, base coplanarity
Rework	Easy — remove screw and lift off	Difficult — requires localized reflow and pad recovery
Throughput on assembly line	Slow — manual install step	Fast — same cycle as other surface-mount parts
Audit trail	Operator-controlled, often unrecorded	Captured by line MES, feeder logs, reflow profile
Best fit	High-stress mechanical joints, prototyping	High-volume consumer and industrial electronics
Common failure mode	Loose screw, stripped thread	Pad lift, solder crack under thermal cycling

Why SMT Standoff Geometry Is Different

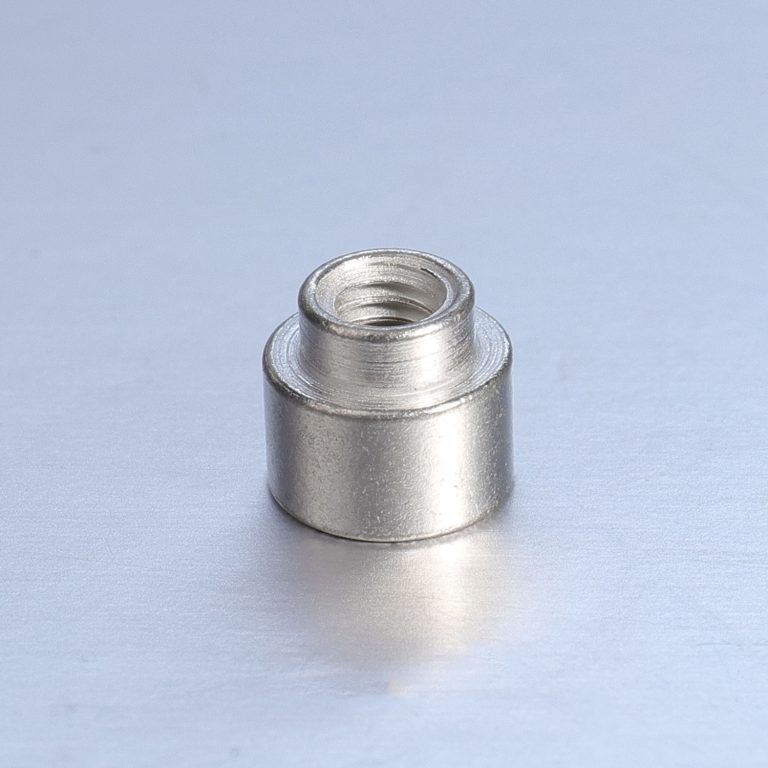

Most SMT standoffs look like miniature threaded bushings — a hex or round base, a cylindrical body, and an internal or external thread on the upper interface. The hidden complexity is that every dimension on the drawing matters to the assembly line, not just to the mechanical function. Base coplanarity under 0.1 mm across the seating face is what allows the solder paste to wet evenly on all pads; a 0.15 mm coplanarity error on a four-pad base means one pad sees too much paste and another sees too little, both of which fail pull testing after reflow.

Thread quality matters because the standoff is the mechanical anchor for the upper assembly. An M3 internal thread with a 6H tolerance class is the standard call, but the useful engagement length and the start-of-thread location determine whether the mating screw bottoms out, cross-threads, or clamps correctly. Mark these on the drawing; do not let the supplier infer them from a similar-looking catalog part.

Packaging presentation is its own engineering package. The standoff must be supplied in EIA-481 carrier tape that holds the part in a controlled orientation, with a cover tape that peels cleanly on the placement machine, and a reel that matches the line-side feeder. Orientation is the single most common failure mode at line-side — a standoff that has flipped in the pocket will be placed upside down and either jam the placement tool or land without reflow contact. A pocket-fit check and an orientation test on the actual placement machine are not bureaucratic; they prevent the most common line stop on a new SMT standoff program.

Material and Finish Selection

Brass C3604 is the most common SMT standoff material because it machines cleanly, takes thread rolling well, solders reliably, and is cost-effective. Brass C11000 is specified when higher conductivity is needed for grounding. Stainless 303 is used for higher-temperature or higher-strength programs, with the trade-off of more challenging thread rolling and lower solder wetting that requires plated finishes. Aluminum is uncommon for SMT standoffs because its reflow compatibility is limited, but it appears in LED thermal-path designs where the standoff is bolted rather than soldered.

Finish selection follows the assembly process. Tin or tin-lead plating is the standard for leaded or lead-free reflow. Gold over nickel is used when the standoff also serves as a grounding contact with controlled resistance. Tin-bismuth or tin-silver-copper platings are specified for specific reflow profiles. The buyer should call out the plating thickness, the under-plate finish (Ra value), and any cosmetic acceptance zones, because these all affect solder joint quality and line yield.

Industry Context Buyers Should Know

Surface-mount threaded standoffs became practical in the late 1990s as pick-and-place accuracy improved and reflow profiles became more controlled. The first wave of adoption was in consumer electronics — mobile phones, hard disk drives, and set-top boxes — where labor cost on the assembly line drove a wholesale shift from through-hole hardware to surface-mount equivalents wherever the mechanical joint could tolerate the loss of strength. By the 2010s the same shift had moved into industrial and automotive electronics, where audit trails and line-side traceability made SMT standoffs attractive even when mechanical strength was the priority.

Today the spec landscape is fragmented. Some programs specify SMT standoffs only for non-structural uses (board-to-chassis light duty), while others use them for load-bearing mounts in ADAS camera modules and BMS boards. The thread standard, pad design, base geometry, and packaging spec must be evaluated per program, not assumed from a competitor design.

Related Custom Manufacturing Services

SMT Standoffs | Swiss Turning Parts | Connector Components | Precision Machining | Electroplating

Authority Summary

FAQ — Custom PCB SMT Standoffs

What is an SMT standoff and how is it different from a through-hole standoff?

An SMT standoff is a surface-mount hardware component (threaded bushing, hex base, or custom geometry) supplied in tape-and-reel packaging for pick-and-place reflow assembly. A through-hole standoff requires manual insertion and screw installation after PCB population. SMT standoffs trade mechanical strength for line throughput and audit-trail consistency.

What materials are used for SMT standoffs?

Brass C3604 is the most common because it machines cleanly, takes thread rolling well, and solders reliably. Brass C11000 is used when higher conductivity is required for grounding. Stainless 303 is specified for higher-temperature or higher-strength programs, often with plated finishes for solder wetting. Aluminum appears in LED thermal-path designs where the standoff is bolted rather than soldered.

What base coplanarity is needed for reflow?

Base coplanarity should be under 0.1 mm across the seating face for a four-pad base; looser coplanarity means uneven solder paste volume on individual pads, which fails pull testing after reflow. For larger bases or finer-pitch pad arrays, the limit tightens. A Cpk study on base coplanarity should be part of the first article report.

Can SMT standoffs be reworked if a defect occurs?

Yes, but rework is more involved than for through-hole hardware. Localized reflow with a hot air station, careful removal to avoid pad lift, and pad recovery with copper braid or epoxy fill are all part of the rework procedure. Specify the rework boundary on the drawing so the supplier can validate it during FAI.

What thread standards should I specify on the drawing?

ISO metric (M2, M2.5, M3, M4) with 6H internal or 6g external tolerance class is the most common call. Unified threads (#4-40, #6-32) are specified on legacy US designs. Name the standard (ISO 261, ANSI B1.13M, ASME B1.1), the tolerance class, the useful engagement length, and the start-of-thread location. Do not let the supplier infer these from a similar-looking catalog part.

What packaging details belong in the RFQ?

EIA-481 carrier tape width, pocket design, cover tape peel strength, reel diameter and quantity per reel, leader-trailer length, splice method, and label format. Add the orientation requirement (which face of the standoff faces up in the pocket) and the maximum allowed part movement in the pocket during feeder transport. The supplier should return a sample reel with a recorded orientation test before production release.

How is solder joint strength verified?

By pull testing (axial), shear testing (lateral), and torque-out testing on the threaded interface, performed on first article samples after reflow. The values should be recorded in the FAI report and tracked through Cpk studies on subsequent lots. For thermal-cycle or high-vibration programs, add thermal-shock testing and vibration testing per the relevant customer-specific standard.

Does VOLCRIX supply tape-and-reel packaging in-house?

VOLCRIX coordinates tape-and-reel packaging through audited partners under signed quality agreements, with the first reel verified by our quality team before production runs. The standoff is manufactured and inspected at our facility, then transferred to the packaging partner with full lot traceability. We hold the production part approval, not the packaging partner.
