Aviation connector pins are the precision-machined contacts inside circular connectors — GX12, GX16, GX20, MIL-DTL-38999, and similar series used across aerospace, defense, robotics, and industrial automation. For buyers sourcing these pins, the choice is usually between buying expensive brand-name contacts or working with a custom manufacturer to machine them to print. At VOLCRIX, we build connector pins to your drawing — Swiss turned, plated to spec, and inspected to ±0.01 mm.
What Are Aviation Connector Pins?

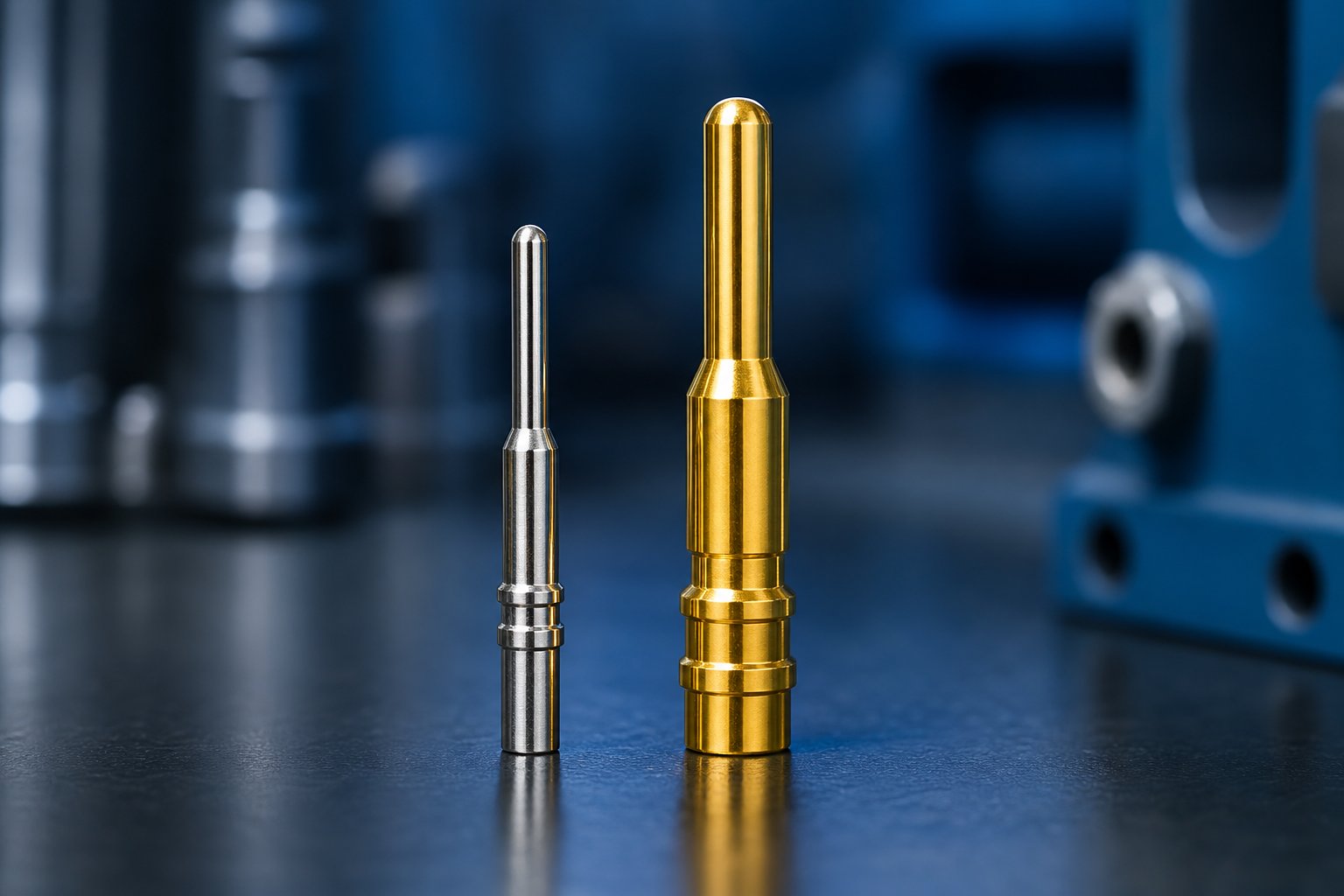

Aviation connectors (often called circular connectors or aviation plugs) use precision pins and sockets to carry power and signals in demanding environments. The pins themselves are small turned components — typically 1 mm to 8 mm diameter — with a defined contact geometry, a solder or crimp tail, and a plated surface for low contact resistance.
Common series include GX12, GX16, GX20, GX25, and GX30 for industrial use, and MIL-DTL-38999 (Series I-IV) for military and aerospace applications. While the connector housings are usually bought from specialist manufacturers, the contacts are frequently sourced separately — especially for replacement, customization, or high-volume programs.
Why Buyers Choose Custom Machined Pins
- Replacement contacts: Brand-name spare contacts for legacy connectors are expensive and slow to source. A machined-to-print copy can be delivered in weeks.
- Custom contact designs: Special lengths, extended tails, non-standard plating, or unique engagement geometry that stock parts don’t offer.
- Cost control: For high-volume programs, custom machining from a China-based Swiss turning shop is often significantly cheaper than buying branded contacts.
- Material flexibility: Choose brass, copper alloys (C11000, C18150), or beryllium copper depending on current rating and mechanical requirements.
Materials & Plating Options
| Material | Typical Use | Key Property |
|---|---|---|
| C11000 Copper | High-current power contacts | 101% IACS conductivity |
| C18150 Cr-Zr-Cu | High-temp, high-cycle contacts | High strength, good conductivity |
| Brass (C3604, CW617N) | General signal contacts | Machinability, low cost |
| Beryllium Copper | Spring-loaded and high-flex contacts | Fatigue resistance |
Plating is applied to the finished pin — gold flash (0.76 µm min), silver (2-5 µm), nickel underplate, or tin — depending on the mating cycle, current, and environmental requirements of your application.
Machining Capabilities at VOLCRIX
- Swiss turning for small-diameter pins with tight concentricity — diameter-to-length ratios up to 1:20
- CNC turning with live tooling for stepped profiles, threads, and cross features in one setup
- ±0.01 mm standard tolerance, verified with Zeiss CMM inspection
- Surface finishing: gold, silver, nickel plating; passivation for stainless
- ISO 9001 quality system with full dimensional reports per lot
- Prototypes in 7-15 days, production in 3-4 weeks
Typical Pin Geometries We Machine
- Solid and hollow pins with controlled wall thickness
- Solder-cup and crimp-barrel tails
- Stepped diameters with engagement shoulders
- Threaded and keyed features for retention
- Custom lengths from 5 mm to 60 mm
Working with Us (Build-to-Print)
We machine strictly to your drawing. Send us your pin drawing (PDF, STEP, or DXF) and we provide a DFM review, material recommendation, and quotation within 24 hours. No minimum commitment on prototypes — we support the full path from sample to mass production.
Our aerospace customers rely on us for precision aerospace components, from simple spacers to complex terminal inserts.
Every machined parts for aerospace order ships with material certificates and CMM inspection reports.
Whether you need precision aerospace parts for prototyping or full production, we handle both from the same shop floor.
From connector pins to structural inserts, our aviation custom machined parts are built to print with full material traceability and CMM inspection.
VOLCRIX is a reliable supplier of bar turned parts for aeronautics, producing contacts from 17-4PH, titanium and beryllium copper.
Can you make pins for GX16 and GX12 connectors?
Yes. GX12, GX16, GX20, and similar series use standard turned pins that we machine regularly. Send us a sample or drawing and we’ll match the dimensions, material, and plating.
Do you supply MIL-DTL-38999 replacement contacts?
We machine contacts to your drawing for 38999-series and other circular connectors. We are a machining partner, not a QPL-listed connector manufacturer — our role is manufacturing the metal contacts to specification.
What tolerances can you hold on connector pins?
Our standard tolerance is ±0.01 mm on turned diameters, with tighter control available on critical features. All dimensions are verified with Zeiss CMM inspection and reported per lot.
What plating do you recommend for aviation pins?
Gold flash over nickel is the most common for signal contacts (0.76 µm min per MIL spec practice). Silver (2-5 µm) is preferred for high-current power contacts. We can also apply tin or custom finishes per your requirements.
Can you handle high-volume production?
Yes. We support programs from prototype (7-15 days) through mass production (3-4 weeks lead time), with full inspection reports and flexible scheduling for volume orders.
