Aviation Connector Pins: Complete Guide to MIL-DTL-38999 and GX Series

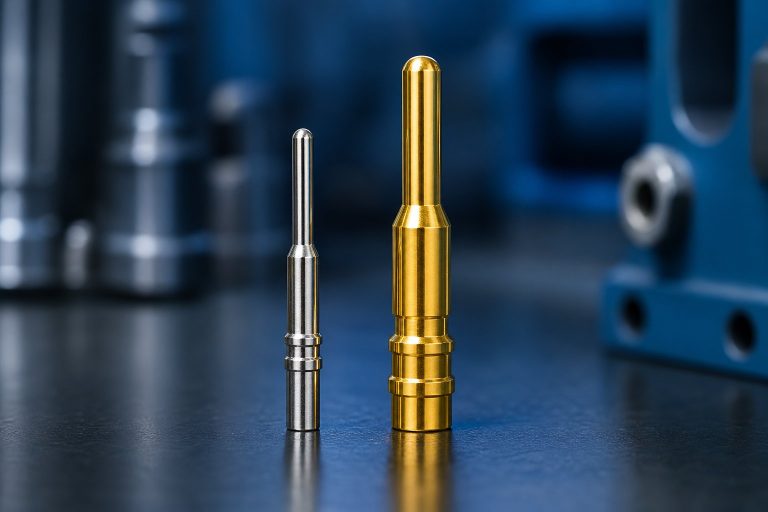

Direct answer: Aviation connector pins for MIL-DTL-38999 and GX series are precision-machined from C11000 ETP copper, C18150 Cr-Zr copper, or beryllium copper per MIL-DTL-38999 specifications. They require ±0.025 mm tolerances, gold plating per ASTM B488 over nickel per ASTM B689, and qualification testing per MIL-STD-810 for vibration, shock, and temperature. Aviation connector pins are critical safety components for military, aerospace, and high-reliability industrial applications. VOLCRIX has manufactured MIL-spec aviation connector pins since 1991 on 60+ Japanese Star Swiss turning machines.
Need Aviation Connector Pin Manufacturing?
Free DFM review · Quote within 24 hours · Prototype in 7–15 days
Common Applications

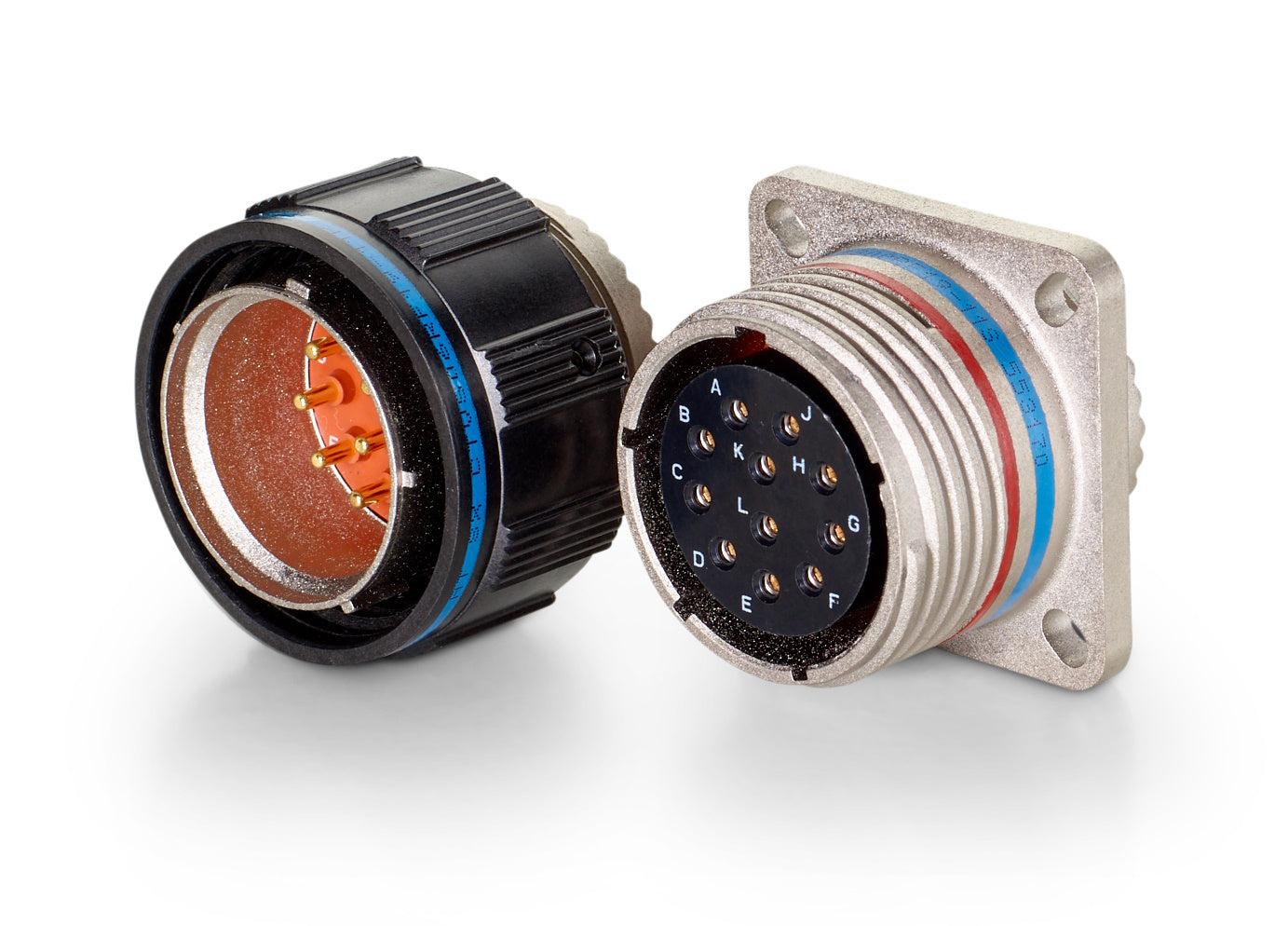

- MIL-DTL-38999 Series I, II, III connector pins — for military and aerospace circular connectors in aircraft, ground vehicles, naval vessels, and missile systems
- GX Series aviation connector pins — for commercial aerospace applications including Boeing 787, Airbus A350, and Embraer E-Jet systems
- ARINC 600 and ARINC 404 connector pins — for avionics bay interconnections in commercial aircraft including in-flight entertainment and flight management systems
- High-reliability industrial connector pins — for oil and gas downhole tools, nuclear power plant instrumentation, and railway signaling systems
Manufacturing Support from VOLCRIX
- 60+ Japanese Star Swiss turning machines — for MIL-spec aviation connector pins with ±0.025 mm tolerance capability and high-precision concentricity
- Multi-material capability — C11000 ETP copper, C18150 Cr-Zr copper, C17200 beryllium copper, and K-Monel per MIL-DTL-38999 specification
- Gold plating per ASTM B488 — with 0.76-1.27 micrometers thickness over 1-3 micrometers nickel strike per ASTM B689 for low contact resistance
- MIL-STD-810 qualification testing — for vibration, shock, temperature, humidity, salt spray, and fluid immersion per military connector specifications
Buyer Checklist
- Specify connector series and shell size — MIL-DTL-38999 Series I, II, or III, shell size 9 to 25, contact size 22D, 20, 16, 12, or 8
- Define material specification — C11000 ETP copper for signal, C18150 Cr-Zr copper for power, C17200 beryllium copper for high-cycle applications
- Indicate plating specification — gold 0.76-1.27 micrometers over nickel per ASTM B488/ASTM B689 for aerospace applications
- Specify qualification testing requirements — MIL-STD-810 environmental testing, MIL-STD-202 electrical testing, AS9100 quality system
Related Custom Manufacturing Services
- Connector Pin Manufacturer Guide — complete OEM buyer guide
- MIL-DTL-38999 vs GX Series Comparison — MIL vs GX comparison
- Custom Precision Pins — connector pins and contact pins
- Aerospace Components — AS9100 precision components
FAQ
What is MIL-DTL-38999?
MIL-DTL-38999 is the U.S. military specification for high-performance circular electrical connectors used in military, aerospace, and high-reliability industrial applications. MIL-DTL-38999 defines three series: Series I (scoop-proof bayonet coupling), Series II (low-profile bayonet coupling), and Series III (triple-start threaded coupling with self-locking). Connectors per MIL-DTL-38999 support 9 to 25 shell sizes with contact arrangements from 1 to 128 contacts. Pins and sockets per MIL-DTL-38999 are qualified to MIL-STD-810 environmental testing and MIL-STD-202 electrical testing.
What is the difference between MIL-DTL-38999 and GX series aviation connectors?
MIL-DTL-38999 is the U.S. military specification for high-reliability circular connectors used across all U.S. military and aerospace programs. GX series is a commercial aerospace connector standard adopted by Airbus and European aerospace manufacturers including Airbus A350 and Eurofighter Typhoon. MIL-DTL-38999 uses pin-and-socket contact system with crimp or solder termination. GX series uses similar pin-and-socket contact system with crimp termination. Both standards require AS9100 quality system and similar environmental qualification testing. Many connector manufacturers offer dual-qualified products covering both standards.
What is the typical gold plating thickness for aviation connector pins?
Typical gold plating thickness for aviation connector pins is 0.76 to 1.27 micrometers (30 to 50 microinches) over 1 to 3 micrometers nickel strike per ASTM B689. Gold plating per ASTM B488 Grade C Type II is standard for aerospace applications. Hard gold plating is preferred over soft gold for high-cycle applications due to superior wear resistance. Some high-reliability applications require heavier gold plating 1.27 to 2.54 micrometers. Plating thickness verified with XRF per ASTM B568.
What is MIL-STD-810 testing for aviation connector pins?
MIL-STD-810 is the U.S. military standard for environmental testing of military equipment including connector pins. MIL-STD-810 covers vibration testing Method 514, shock testing Method 516, temperature testing Method 501/502, humidity testing Method 507, salt spray testing Method 509, and fluid immersion testing Method 504. Aviation connector pins must pass MIL-STD-810 testing to qualify for aerospace applications including commercial aircraft, military aircraft, and spacecraft. VOLCRIX performs MIL-STD-810 qualification testing per customer specification through certified testing laboratories.
Need Aviation Connector Pin Manufacturing?
Free DFM review · Quote within 24 hours · Prototype in 7–15 days
Certifications, Standards & Compliance
- ISO 9001:2015 — Quality management system
- AS9100D — Aerospace quality management
- MIL-DTL-38999 — Military circular connector specification
- MIL-STD-810 — Environmental testing
- MIL-STD-202 — Electronic component testing
- ASTM B488 — Gold plating specification
- ASTM B689 — Nickel plating specification
- Nadcap — National Aerospace and Defense Contractors Accreditation
For specific compliance questions contact our sales team.
