Progressive Die Stamping: Process, Benefits, and Applications for Precision Metal Parts

Progressive die stamping guide: learn how this high-speed process works for precision metal parts. Benefits include consistent quality, fast cycle times, and cost-effective high-volume production runs.

How Progressive Die Stamping Works

The process begins with a coil of metal strip — typically steel, stainless steel, brass, or copper — fed into a stamping press equipped with a progressive die. The die contains multiple stations arranged in sequence:

Each press stroke produces one complete part. For a 200-strokes-per-minute press with a 14-station die, that means 200 finished parts per minute — approximately 12,000 per hour.

Key Advantages of Progressive Die Stamping

High Production Speed

Once the die is proven and the press is running, production rates of 100-400 parts per minute are common. This makes progressive die stamping the most cost-effective process for volumes above 100,000 parts per year.

Consistent Quality

Because all operations occur in a single die with a single setup, dimensional variation is minimized. The pilot hole system ensures each part location is repeatable to within ±0.025 mm from stroke to stroke.

Reduced Labor

Progressive dies run unattended or with minimal operator oversight. One operator can manage multiple press lines, significantly reducing labor cost per part.

In-Die Operations

Modern progressive dies often include in-die tapping, in-die assembly, in-die marking, and even in-die sensor testing. These value-added operations eliminate secondary processes.

Applications at VOLCRIX

At VOLCRIX, our progressive die stamping capabilities include presses up to 200 tons, handling materials from 0.1 mm to 6.0 mm thickness. Typical stamped parts include:

• Electrical terminals — for automotive and EV connectors, requiring precise contact beam geometry
• Busbars — for battery pack interconnections, with formed features for welding tabs

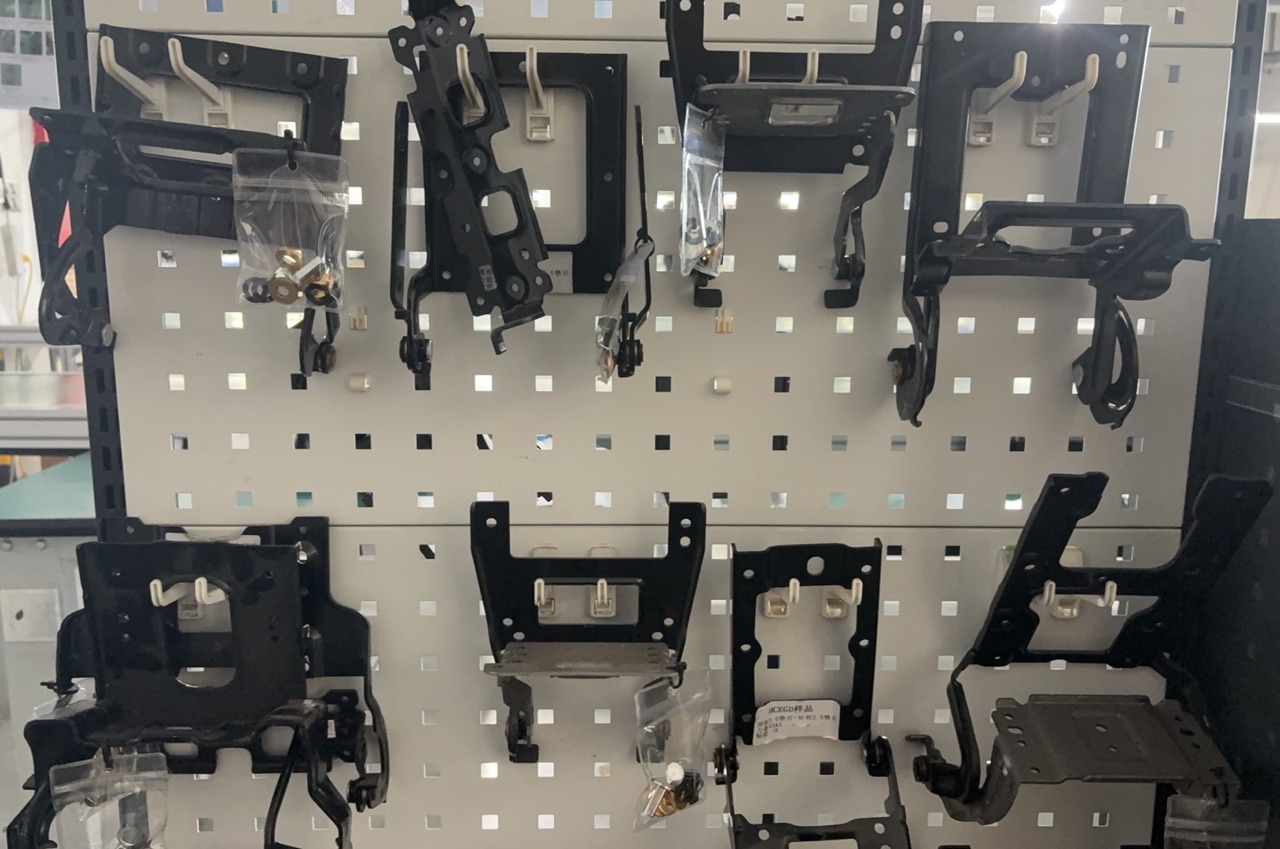

• Mounting brackets — with combined forming, tapping, and marking in a single progressive die
• SMT hardware — standoffs, spacers, and nuts for PCB assembly, typically in phosphor bronze or brass
• Spring contacts — in beryllium copper or stainless steel, requiring controlled normal force

Tooling Design and Validation

A progressive die is a significant investment, typically costing $15,000-$50,000 depending on part complexity and station count. At VOLCRIX, we validate every die with:

• First article inspection — full CMM report on the first production run
• Capability study — Cpk ≥ 1.67 on all critical dimensions
• Run-off validation — 2-hour continuous production run to verify stability
• Die maintenance plan — recommended sharpening intervals and preventive maintenance schedule

Need custom metal stamping parts for your project? View our metal stamping parts manufacturing capabilities →
