Precision stamping tolerances explained: what ±0.01mm means for production metal stamping. Learn how die design, material selection, and press capabilities affect achievable tolerance levels in high-volume runs.
Achievable Tolerance Classes
| Class | Tolerance Range | Application |
|---|---|---|
| Commercial | ±0.125 mm to ±0.250 mm | General brackets, non-critical enclosures |
| Precision | ±0.050 mm to ±0.100 mm | Automotive terminals, connector contacts |
| High Precision | ±0.025 mm to ±0.050 mm | EV busbars, critical spring contacts |
| Ultra Precision | ±0.010 mm to ±0.025 mm | Features within same die station |
What Affects Stamping Precision
Material Variation
No material is perfectly uniform. Thickness variation of ±0.01 mm to ±0.03 mm is normal even in premium coil stock. Yield strength can vary ±5% within a coil. These material variations translate directly into dimensional variation in the stamped part. Precision stamping requires either tighter material specifications or process compensation.
Springback
When a metal is bent, it does not completely retain its formed shape. The elastic recovery (springback) depends on the material’s modulus of elasticity and yield strength. For a 90° bend in cold-rolled steel, springback is typically 1-2°. In high-strength stainless steel, it can be 3-5°. The die must be designed with springback compensation, and adjustments may be needed between material lots.
Tooling Wear
Each press stroke causes microscopic wear on the die. After 100,000 strokes, a sharp punch edge can round by 0.01-0.02 mm, affecting burr height and dimensional accuracy. Regular sharpening (typically every 50,000-200,000 strokes depending on material) restores the die to its original condition.
Press Alignment and Speed
The press itself must maintain alignment within 0.01 mm between the upper and lower die shoes. High-speed presses (200-400 SPM) introduce vibration and dynamic deflection that can reduce precision compared to slower, heavier presses.
High-Tolerance Stamped Electronics Parts

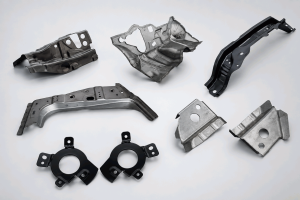

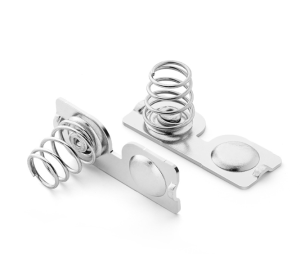

For high-tolerance stamped electronics parts — connector terminals, SMT shields, battery contacts, and precision brackets — tolerance alone is not enough. The material thickness, grain direction, and die maintenance all interact to hold critical dimensions across millions of strokes. Our stamping line runs in-die gauging on high-volume electronics parts, with CMM verification on first articles and SPC sampling during production. Typical achievable tolerances for stamped electronics parts: flatness within 0.05 mm, hole position within ±0.03 mm, and burr height under 10% of material thickness.
VOLCRIX Quality Control for Stamped Parts
At VOLCRIX, every stamping job includes:
- First article inspection — Full dimensional report on 5-10 parts from the initial run
- Capability study — 30-piece sample measured on a Zeiss CMM, with Cpk ≥ 1.67 on all critical dimensions
- In-process checks — Dimensional checks at the frequency specified in the control plan
- Final inspection — AQL-based sampling per ISO 2859
- Documentation — Full inspection report package with every shipment
Our die makers have an average of 15 years of experience in precision stamping tooling. We don’t just run your die — we ensure it produces consistently good parts from the first stroke to the last.
Need custom metal stamping parts for your project? View our metal stamping parts manufacturing capabilities →
