Walk into any AI data center being built today — whether it’s in Northern Virginia, Singapore, or Frankfurt — and you’ll see thousands of servers stacked floor to ceiling. What you might not notice is what’s holding each one of them: a pair of steel slide rails that cost a fraction of the server itself but take just as much engineering to get right.

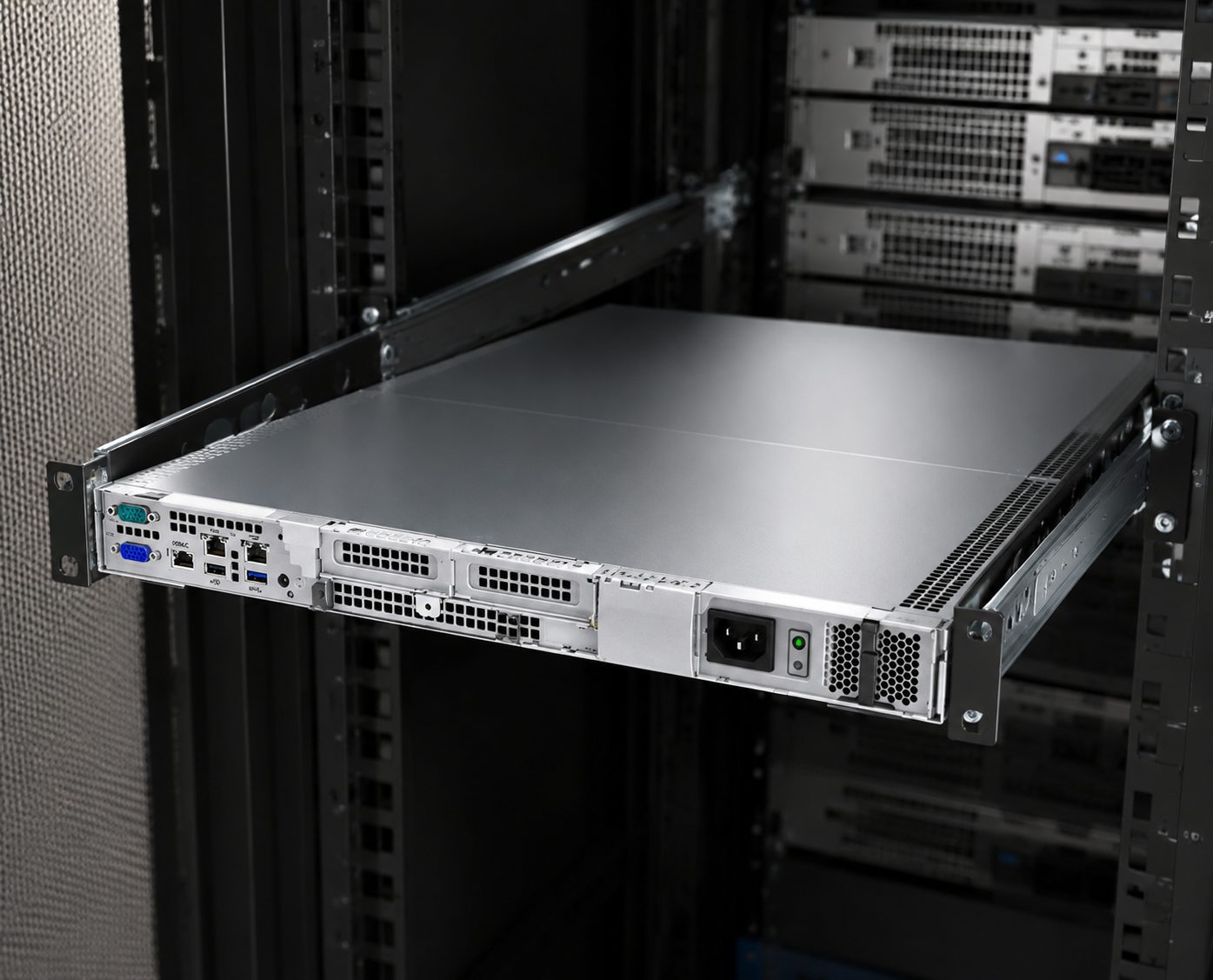

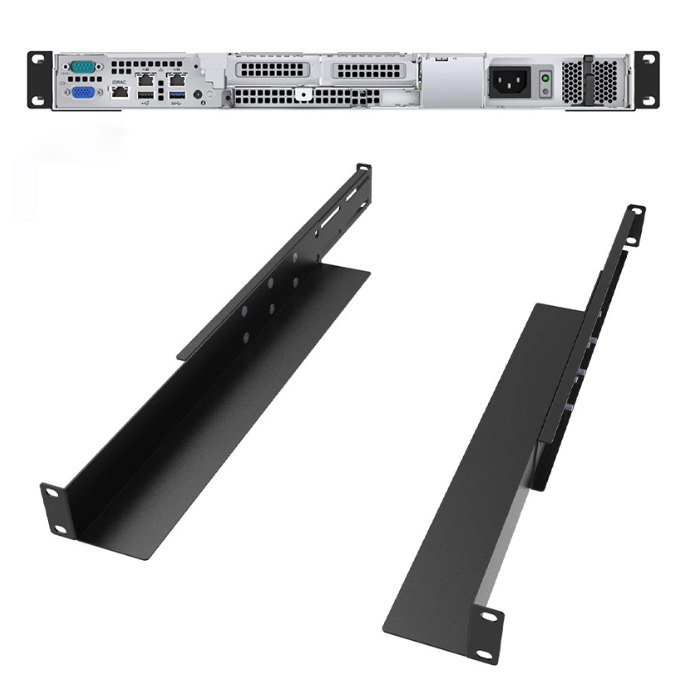

Server slide rails (also called rack mount rails, server rail kits, or chassis slides) are the metal brackets that let you slide a server in and out of a standard 19-inch cabinet. They’re made from cold-rolled steel, stamped and formed into precision channels, then coated for corrosion resistance.

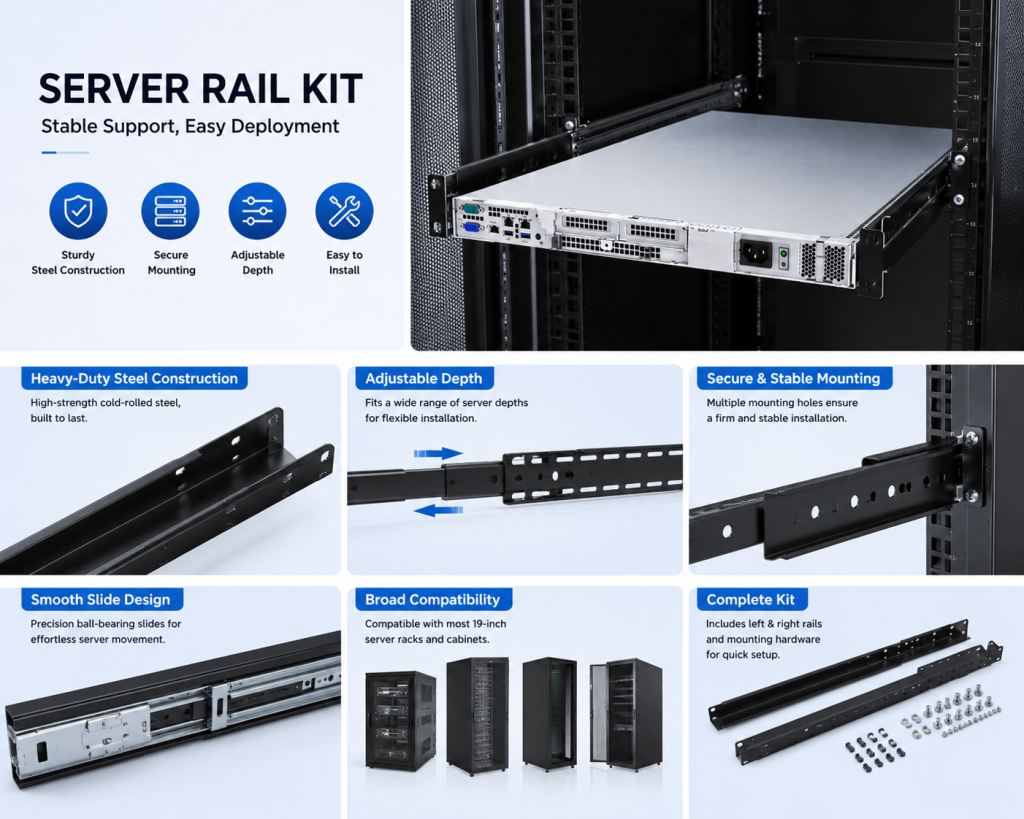

A typical set includes left and right rails, self-locking diamond nuts, countersunk mounting screws, and sometimes ball-bearing sliders for smooth travel. The whole system has to carry 30-50 kg per server, align perfectly with the cabinet’s mounting holes, and survive years of insertion and removal cycles without binding or wearing out.
AI training clusters don’t use one or two servers. They use thousands. An AI supercomputer like NVIDIA’s DGX SuperPOD can contain 1,000+ servers in a single cluster, each needing two rails. That’s 2,000+ rail sets per deployment. And these deployments are happening everywhere — hyperscalers, colocation providers, and even mid-tier data center operators are all scaling up.
The result? Demand for precision-stamped server rails has spiked significantly in 2024-2026. And unlike consumer electronics, this isn’t a product you can impulse-buy from a catalog — each rail set needs to match specific chassis dimensions, load requirements, and cabinet standards.
Servers come in different depths, from shallow 500mm chassis for edge computing to deep 1000mm units for GPU-heavy AI servers. Good rail kits have a telescoping middle section that adjusts to fit. This means the stamping die needs to account for sliding channels with tight clearances — too loose and the rail wobbles, too tight and it jams.

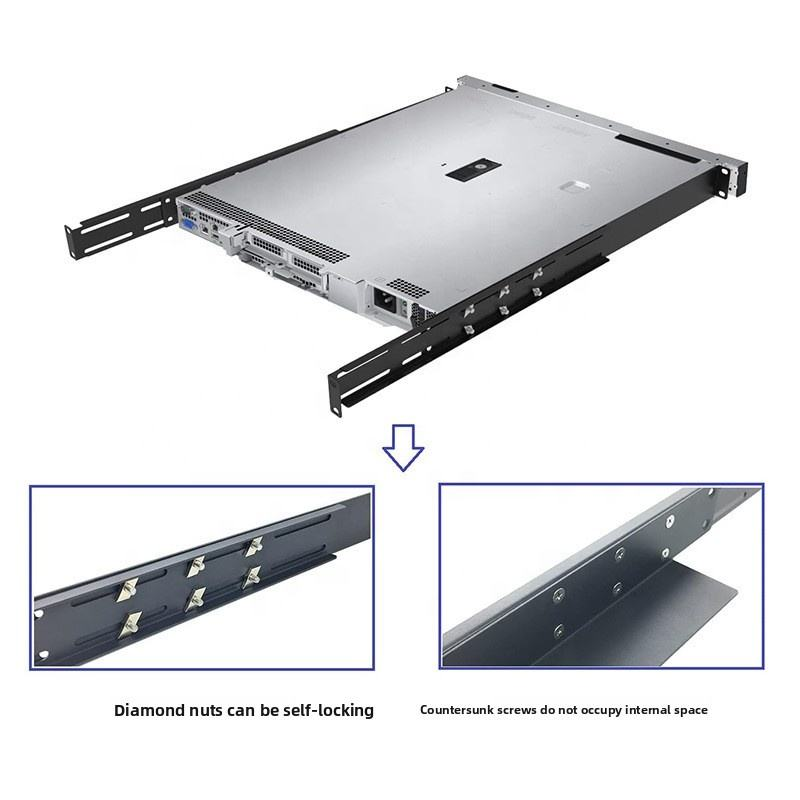

Diamond-shaped self-locking nuts are standard in server rail kits. Once torqued, they resist loosening from vibration — critical in data centers where cooling fans and nearby equipment create constant low-frequency vibration. A loose rail means a server that shifts out of alignment, which means downtime.
The screws that mount the rail to the chassis must be countersunk — meaning the screw head sits flush with the rail surface. This keeps the internal space of the server chassis clear for cables, airflow, and components. Every millimeter counts in a 1U chassis, and a protruding screw head can block a cable run or disrupt airflow.
Most server rails get a black powder coating or zinc plating. This isn’t just for looks — data centers control humidity and temperature tightly, but condensation can still happen during maintenance cycles when doors are open. A good corrosion-resistant coating is non-negotiable.
A server rail looks simple — a long channel with some holes and a sliding section. But producing them at scale with consistent quality requires:
Stamping is the right process for server rails because:
If you’re sourcing server slide rails for your AI infrastructure project, here’s what to put in your spec:

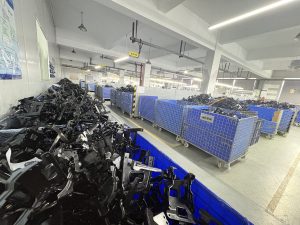

We’ve been producing precision stamped components for industrial and electronics applications for years. Server rails are a natural fit for our capabilities:
AI data center buildouts aren’t slowing down. If you’re specifying server rails for your next project, let’s talk about what your tolerances look like.
